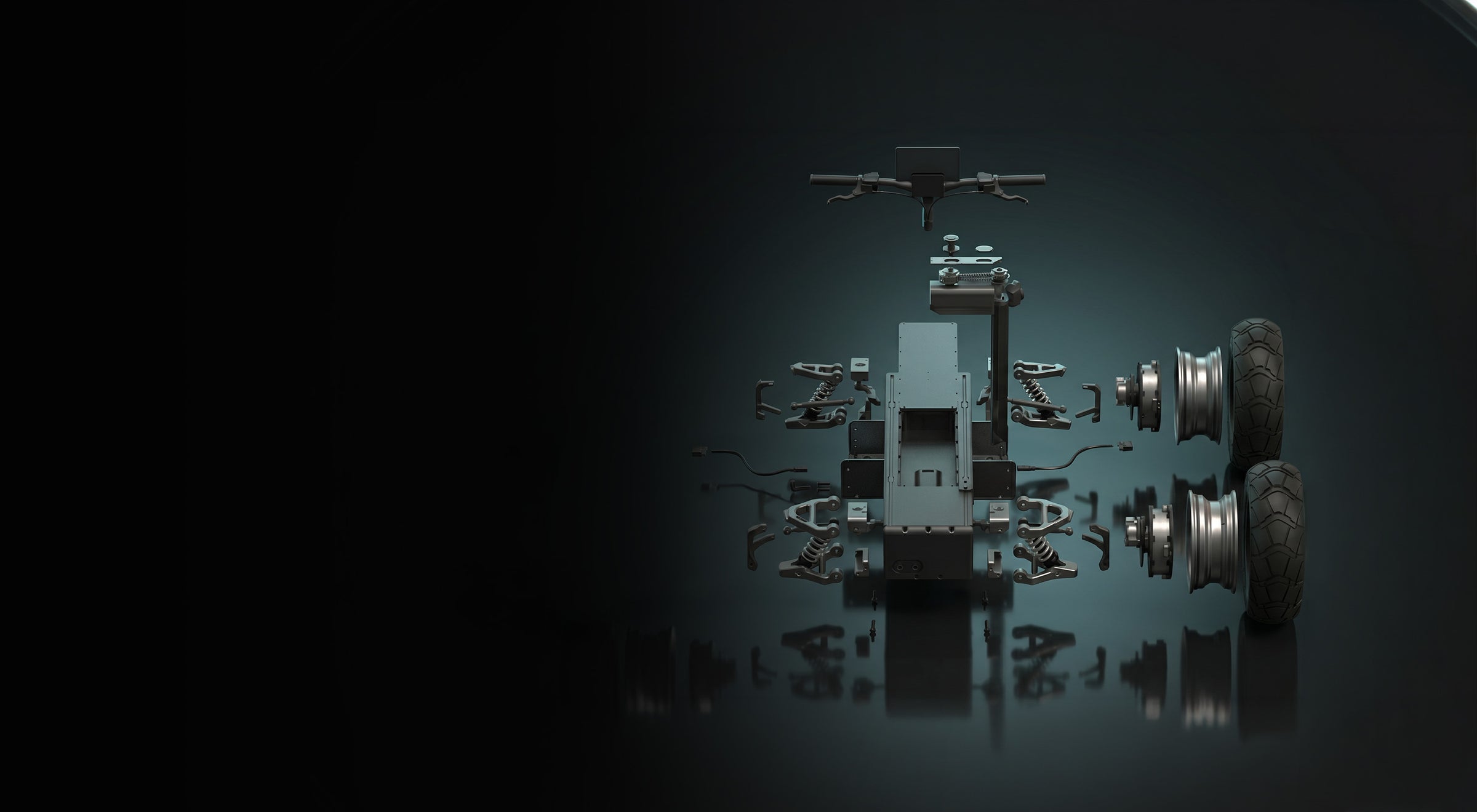

Engineering & Innovation
The technical platform behind every UPT configuration.
UPT is not a one-purpose mini EV. It is a modular electric mobility platform engineered around four independently controlled in-wheel motors, modular high-capacity batteries, a configurable chassis, intelligent vehicle control, and mechanical interfaces designed for mass customization.
Engineering philosophy
Built for mass customization. Engineered for safety, longevity, and serviceability.
Most small electric vehicles are built around a fixed use case. UPT takes a different route: one shared engineering platform can become a micro utility vehicle, resort transporter, patrol unit, cargo mover, jobsite tool carrier, accessibility solution, or partner-developed specialty vehicle.
The platform approach reduces the cost and complexity of niche mobility. Instead of engineering a new low-volume vehicle for every vertical, UPT shares the expensive parts — chassis, powertrain, VCU, battery system, suspension, braking, and control logic — while allowing the upper body and task modules to change.

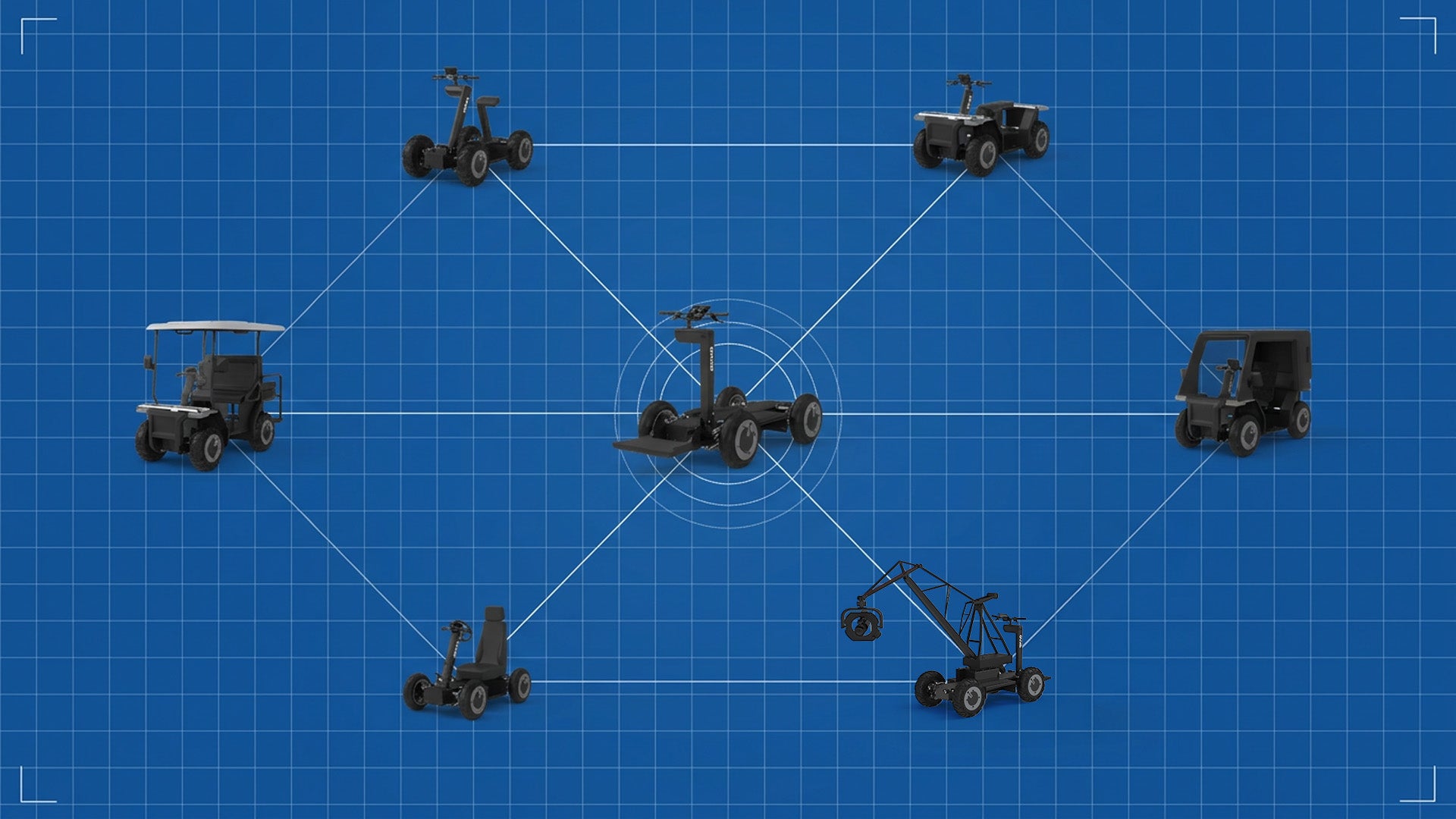

Platform architecture
One engineered base. Many specialized small-footprint vehicles.
The core UPT architecture separates the durable technical platform from the body and accessories — so the same parts work whether you are spec'ing a cargo mover, a patrol unit, or an accessibility vehicle.
Shared chassis and control architecture
A common frame, drive, battery, VCU, braking, and suspension logic runs across many use cases. The durable technical platform is deliberately separated from the mission-specific body and accessories, giving partners a faster pathway to specialized compact EVs without starting from a blank sheet.
Configurable body and attachment layer
Seats, cargo modules, canopies, racks, tools, sensors, and industry-specific bodies mount on the same platform logic. The upper body and task modules change; the engineered base stays the same.
Serviceable and upgradeable by design
Replaceable modules, accessible components, onboard diagnostics, and standardized mechanical interfaces support a long product life and field maintenance across demanding environments.
Proprietary engineering
The engineering stack that makes modularity practical.
UPT modularity is not one feature or a bolt-on accessory system. It comes from a complete mechanical, electrical, software, battery, control, chassis, and validation architecture designed so one compact EV platform can become many specialized light-duty vehicles.
Modular platform architecture
One shared small-footprint EV platform supports cargo, passenger, patrol, shuttle, utility, accessibility, delivery, robotic, and partner-developed specialty configurations without redesigning the full vehicle.
Distributed electric drive
Independently controlled in-wheel motors open packaging space and enable selectable FWD, RWD, AWD/4WD, crawl control, regenerative braking, traction logic, and tank-turn maneuvering.
Modular energy and mobile power
Removable high-capacity batteries support range scaling, service, fleet rotation, and auxiliary loads for tools, sensors, lighting, refrigeration, mobile workstations, and partner modules.
Software-defined controls
A modular, development-ready controls architecture lets UPT adapt drive behavior, diagnostics, accessory logic, user interfaces, remote features, and partner-specific operating modes.
Reconfigurable steering and chassis kinematics
Suspension, steering, scrub radius, leverage, shock behavior, wheel travel, and compact turning behavior are treated as configurable platform systems, not isolated vehicle parts.
Validation and simulation layer
Route simulation, CAD, FEA, Matlab-based suspension studies, prototype testing, and configuration-specific validation help partners understand whether a UPT build can perform the mission.

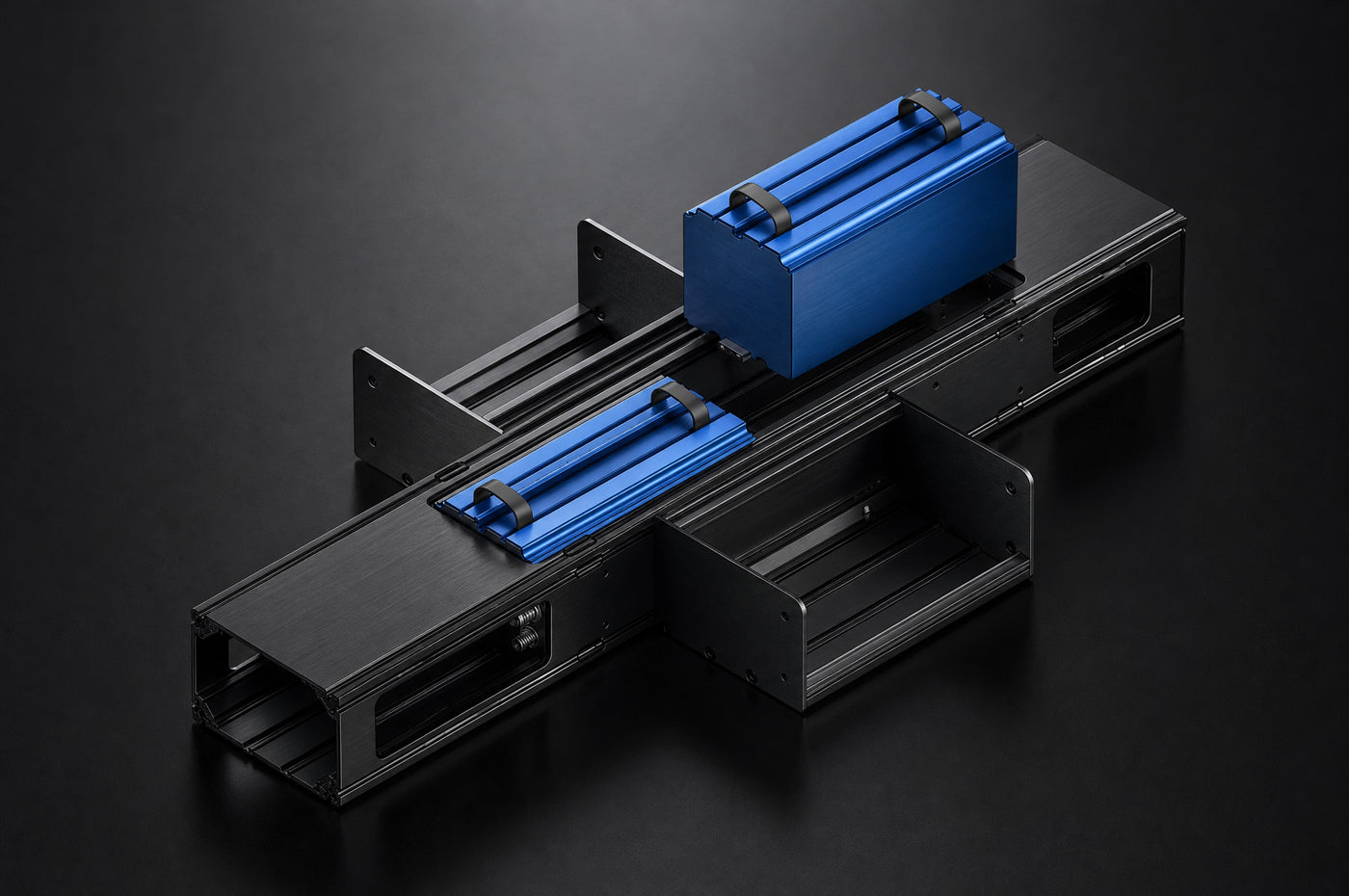

Battery system & mobile power
A high-capacity battery platform that also powers the job.
UPT is designed as a compact electric vehicle and a mobile energy platform. Beyond driving the wheels, its battery architecture can support compatible tools, electronics, lighting, refrigeration, sensors, robotics, mobile workstations, and partner-developed modules.
Dual battery configurations provide up to 5.7 kWh of onboard energy. The auxiliary 48 V output can support compatible external loads up to 2.4 kW, depending on configuration, duty cycle, and thermal limits.
-
2 × 2,832 Wh battery packs
Modular packs support service, swapping, and scalable energy requirements.
-
Smart BMS integration
Battery management is integrated into the control architecture for monitoring and protection.
-
UL 2271 battery safety architecture
Designed around safety-focused battery compliance requirements for electric mobility applications.
Powertrain & traction
Electric drive built for utility, control, and maneuverability.
UPT uses a distributed drive system — one motor and one controller per wheel. That makes the platform more adaptable than a conventional single-motor drivetrain and opens control strategies valuable for work, mobility, and tight-space operation.
Performance and drive figures shown here are configuration-dependent. The platform is presented to show engineering capability — it does not imply one universal legal or performance configuration. Final values vary by market, regulation, use case, and selected modules.
Selectable drive layout
FWD for tight maneuvering, RWD for efficient cruising, and 4WD/AWD for traction, payload movement, and uneven terrain — switched from the console with no mechanical drivetrain to engage.
Tank-turn capability
Left and right side wheels can be driven in opposite directions to pivot the platform in place on suitable surfaces — 0 m turning radius for warehouse aisles, corridors, and tight trail turns.
Drive modes
Eco, Standard, and Performance profiles let the same platform prioritize range, balanced daily use, or demanding work cycles.
Crawl & cruise control
Low-speed crawl supports precise positioning; cruise control supports longer campus, resort, trail, and patrol routes.

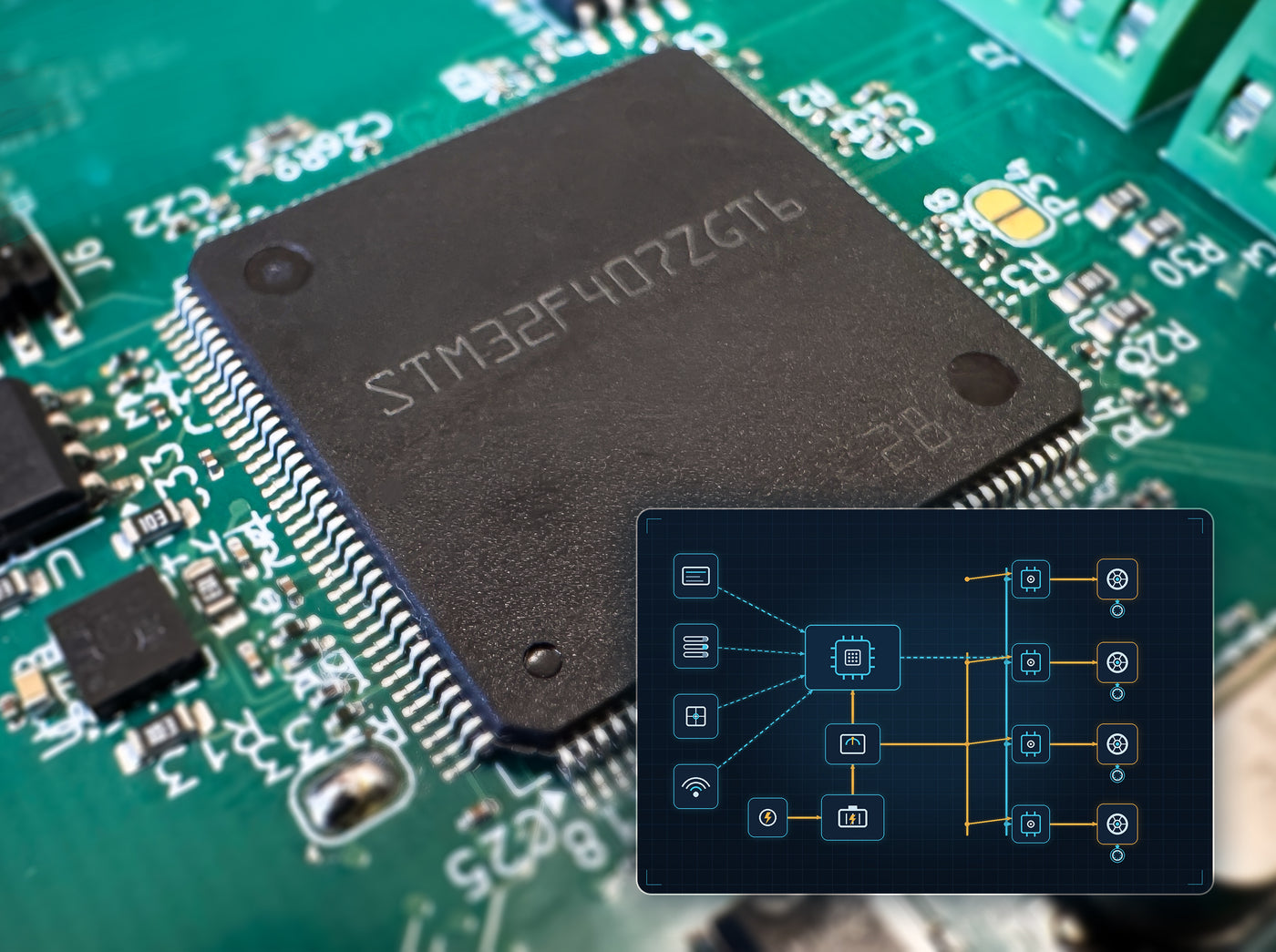

Vehicle Control Unit
The brain of UPT: smart control for a configurable EV platform.
UPT's VCU coordinates drive mode selection, traction control, regenerative braking, electronic parking brake, motor controller communication, diagnostics, and future software-enabled features through a modular, development-ready, and future-ready controls architecture.
CANBUS control
Real-time communication across motor controllers, battery systems, dashboard, and electronic control modules.
Modular control architecture
Development-ready logic adapts drive behavior, steering/drive controls, accessory functions, diagnostics, and partner-specific configuration rules.
Robotics-ready direction
Remote-control, unmanned operation, AI/autonomy integration, and fleet-dashboard pathways can be developed with partners.

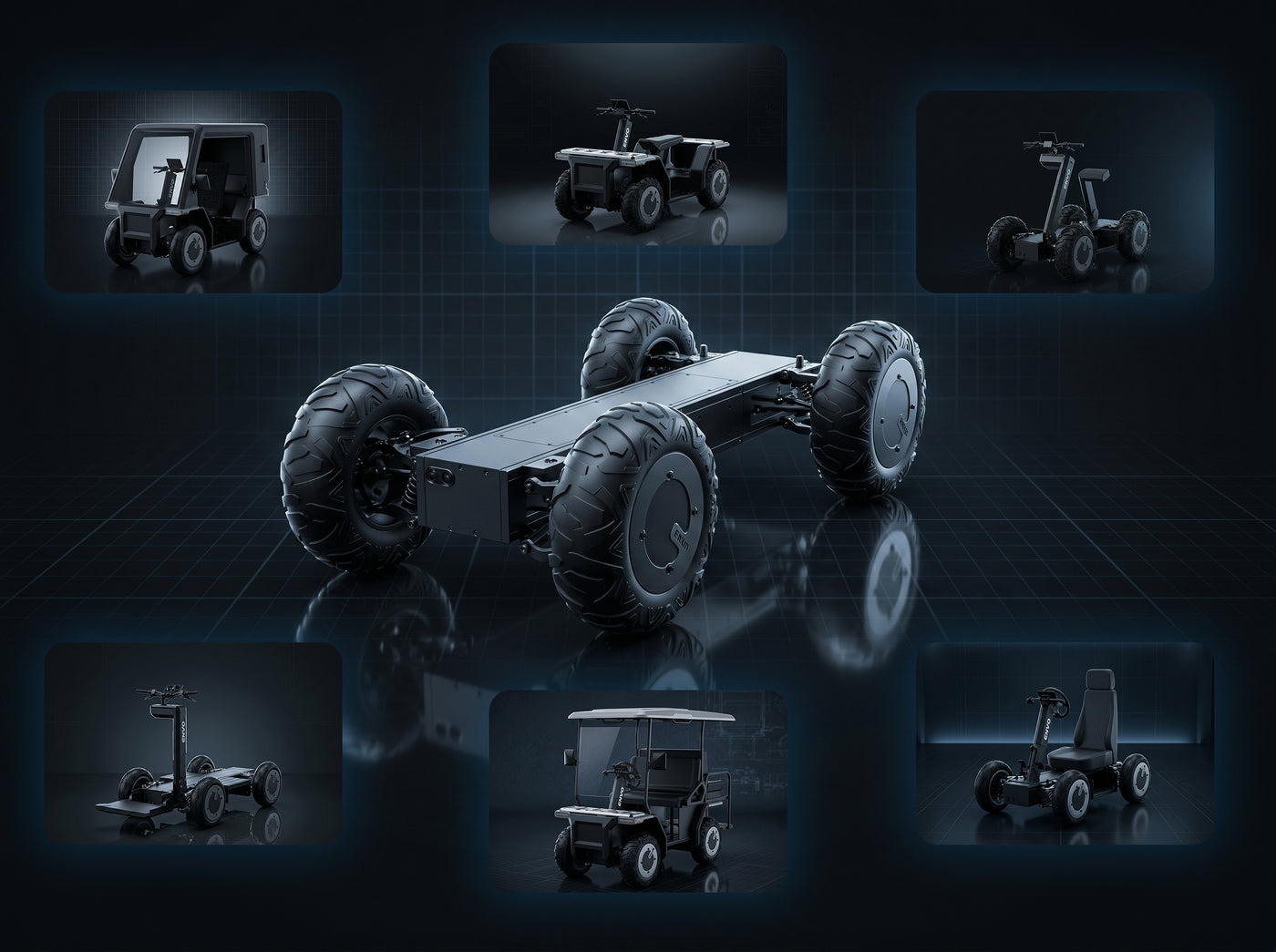

Chassis & mounting
Engineered to be reconfigured.
The UPT chassis uses standardized mounting logic across the platform, so partners can add cargo bodies, seats, racks, sensors, tool mounts, canopies, bumpers, or application-specific modules without redesigning the entire small-footprint vehicle. Its reconfigurable steering and drive control architecture can adapt the vehicle behavior to different layouts, duty cycles, and operating environments.
Foldable bumper and rack concepts
Long-item support, front stand/rack functionality, and accessory mounting can be developed by configuration.
T-slots across the frame
Useful for racks, tool carriers, sensors, body panels, test fixtures, and custom partner modules.
IP67 protected main chassis block
The main lower chassis block protects the battery and electronics so they stay safe and functional across demanding environments, subject to configuration and maintenance.
Adjustable wheelbase and track
The platform can be dimensioned for compact storage, stability, payload, or application packaging.
Reconfigurable steering and drive control
Steering layout, drive mode, speed behavior, low-speed control, and traction response adapt to the intended UPT configuration.
Suspension & steering kinematics
Compact packaging, predictable handling, and tunable terrain behavior.
UPT's suspension and steering systems are engineered using kinematic modelling, hardpoint definition, wheel-travel curves, steering-ratio analysis, Ackermann behavior, tie-rod force estimates, and configuration comparison between development generations. The goal is not to expose every engineering detail, but to demonstrate that UPT is designed with measurable suspension, steering, load-transfer, and handling targets.

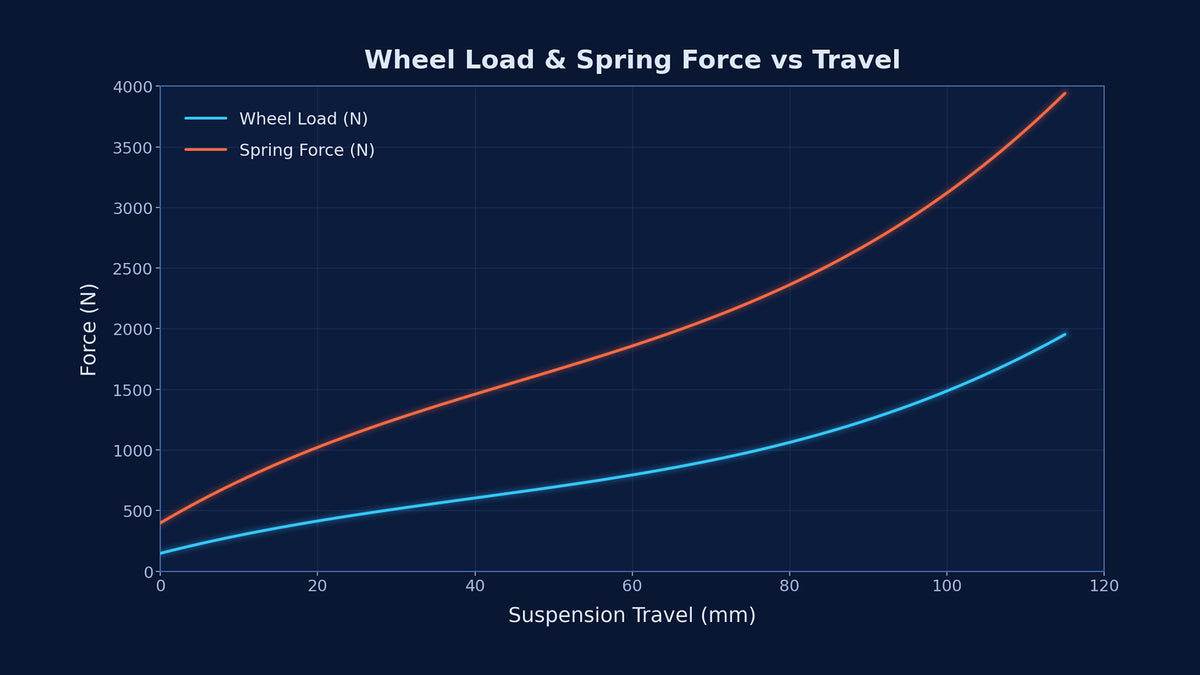

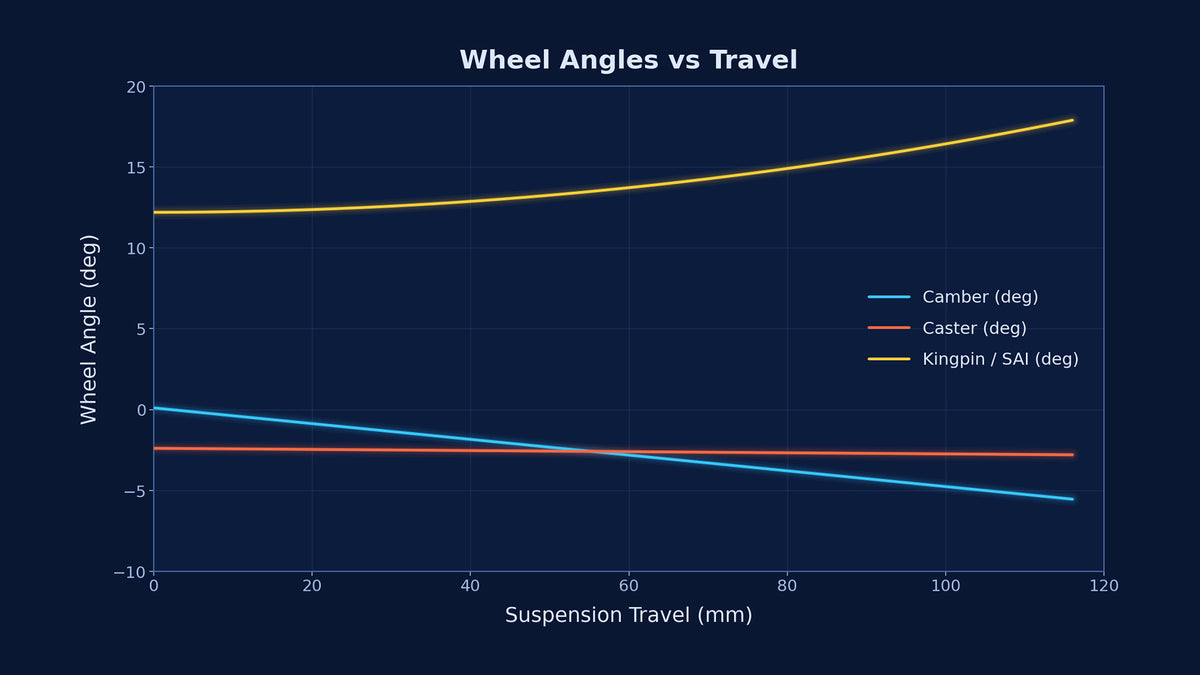

Wheel geometry through suspension travel

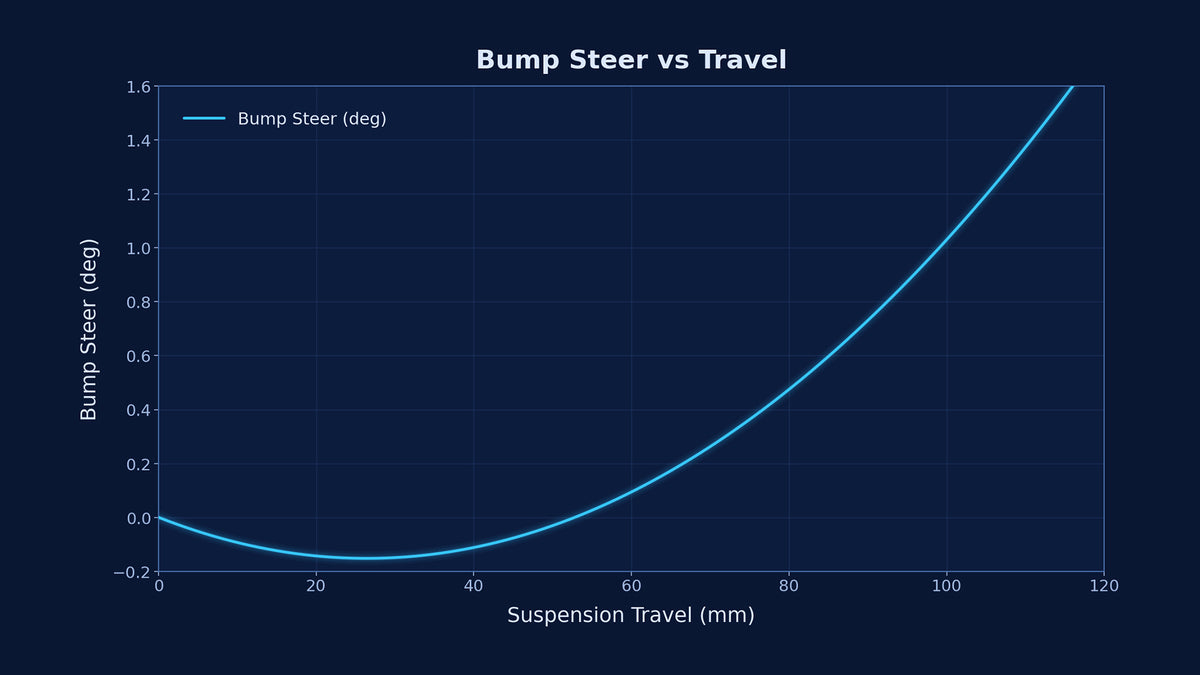

Bump steer and toe control
Configurable shock tuning

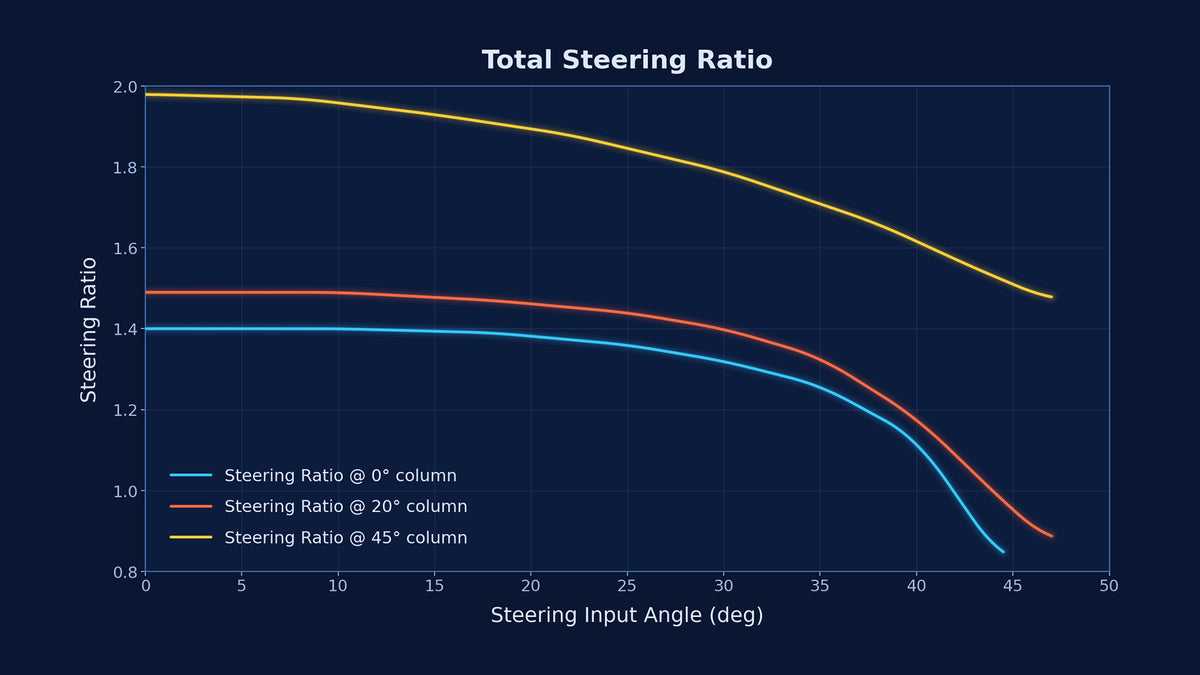

Steering ratio and low-speed maneuverability

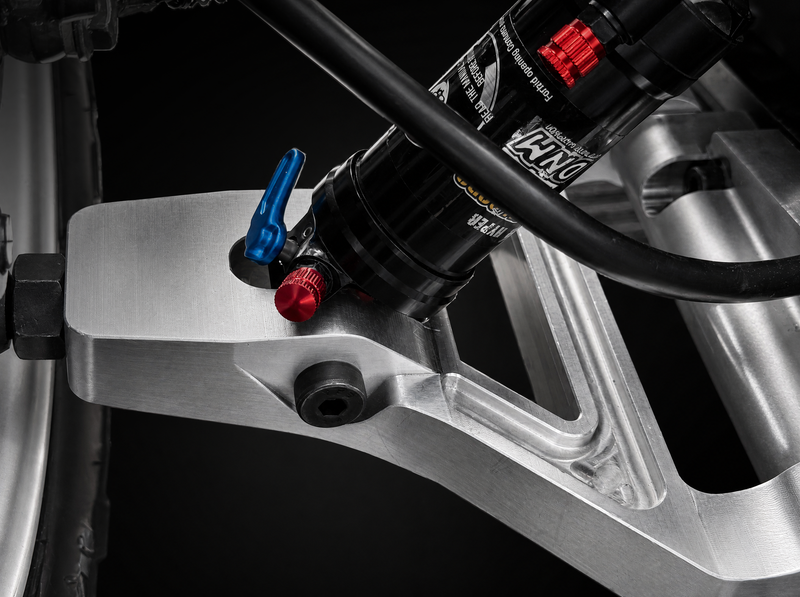

120 mm suspension travel
A flat double-wishbone layout targets compact packaging with useful wheel travel for urban, utility, and uneven-surface operation.

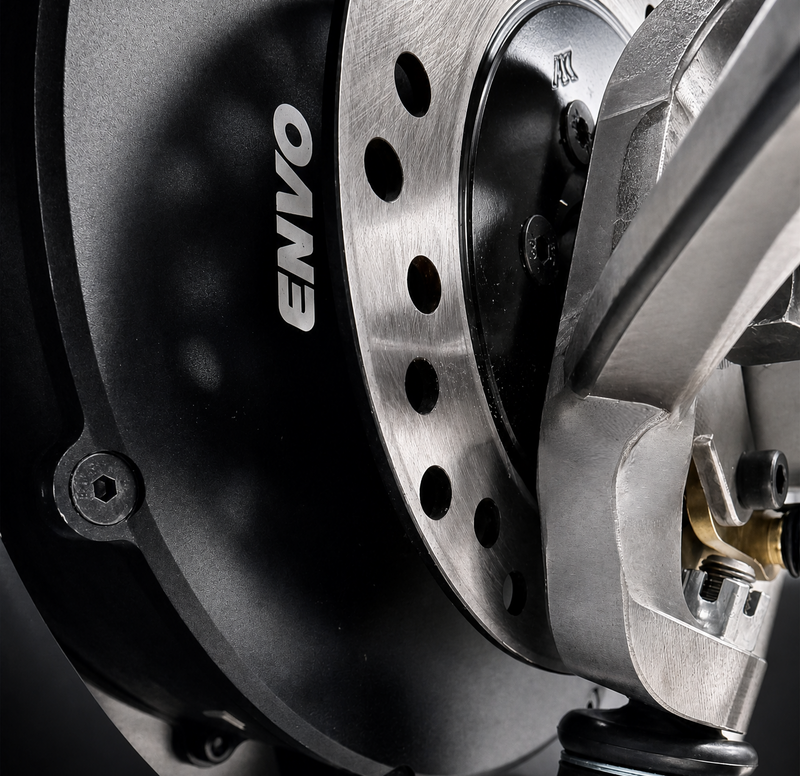

Low scrub-radius target
The steering model evaluates torque-steer / kickback sensitivity by studying scrub radius and single-wheel drive/brake force.

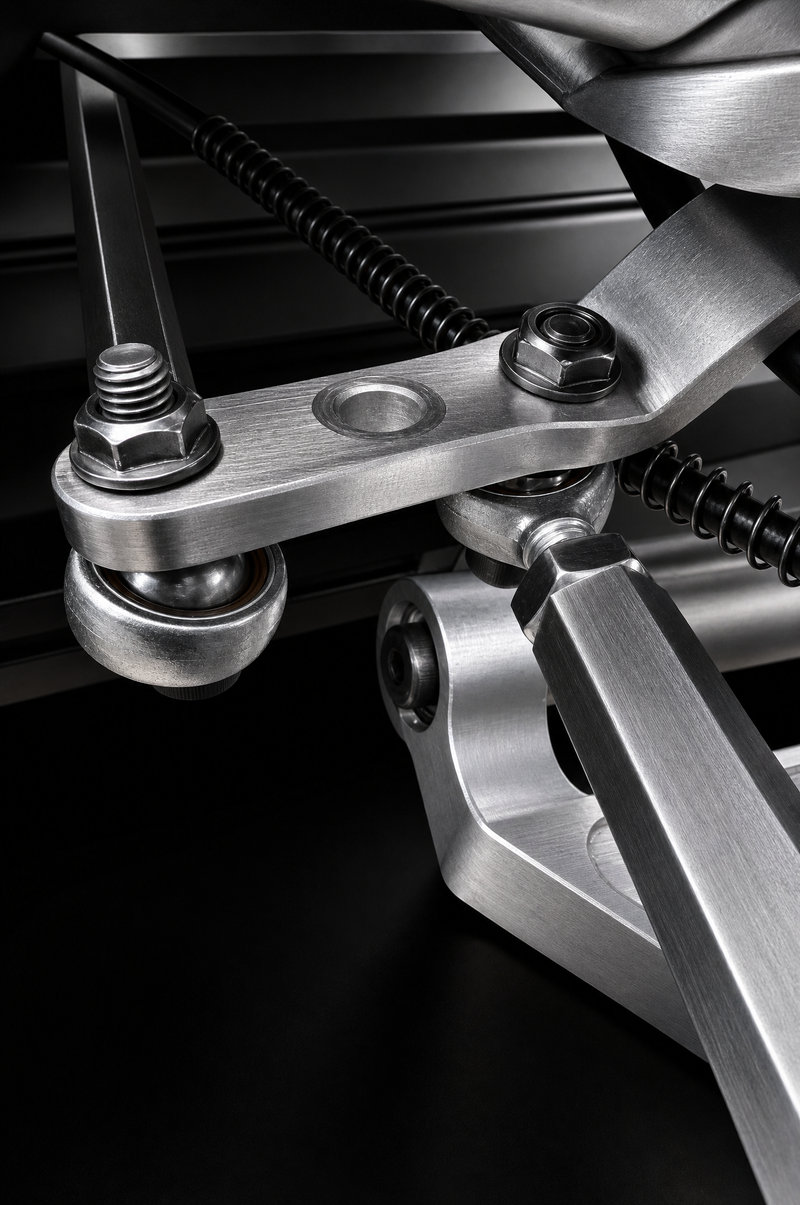

Future tuning path
Optional steering-geometry optimization, anti-roll-bar tuning, tilt-steering, four-wheel steering, and configuration-specific control logic can be developed for future UPT variants.

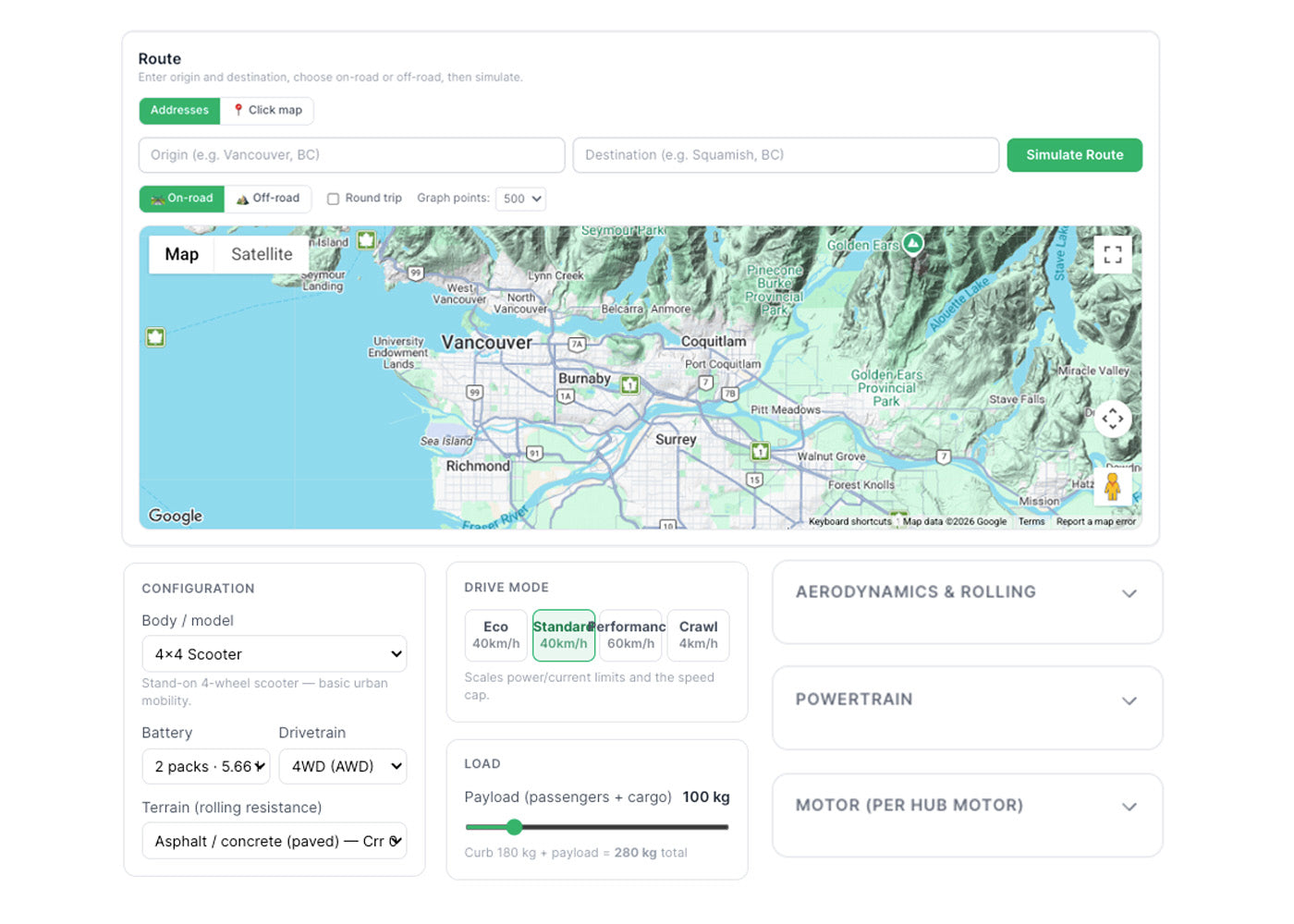

Performance simulator
Don't guess the range. Simulate the mission.
The UPT simulator is a Google Maps based performance tool that lets you model routes, drive cycles, speed, terrain, temperature, load, and vehicle configuration to estimate whether a specific UPT-based vehicle can do the job. Instead of a generic maximum-range claim, fleets simulate their own daily use case.
Route grade
Use map-based elevation and road profile to test energy demand.
Payload / load
Estimate how passenger, cargo, and equipment loads affect range.
Temperature
Model battery and efficiency sensitivity under real operating climates.
Drive cycle
Compare city, campus, off-road, stop-and-go, and route-specific use cases.
Full specifications
UPT general technical specifications.
Powertrain, battery, performance, chassis, VCU, suspension, and environmental design. Values are preliminary and configuration-dependent; final specifications may vary by market, use case, regulation, and selected modules. Tap any group to expand.
Powertrain
| Motors | 4 × in-wheel PMSM motors, one per wheel |
|---|---|
| Controllers | 4 × PMSM motor controllers |
| Nominal voltage | 48 V |
| Max current | Up to 75 A per controller, configuration dependent |
| Peak torque | Up to 140 N·m per wheel; 560 N·m total distributed peak |
| Peak power | Up to 3 kW × 4 motors; 12,000 W peak distributed, system-limited by configuration |
| Drive layout | Selectable FWD / RWD / 4WD from console |
| Regenerative braking | Standard on all wheels |
| Traction control | Individual wheel traction-control logic |
Battery
| Configuration | Standard single pack; optional dual-pack architecture |
|---|---|
| Capacity per pack | 2,832 Wh |
| Total capacity | 5,664 Wh / 5.7 kWh with dual packs |
| Battery safety | UL 2271 safety compliance architecture / battery-pack compliance pathway |
| Swapping | Individually removable modular packs |
| Charging | Standard 110 V North America / 220 V EU outlets |
| Charge time | ~3 hours per pack on a standard outlet, charger dependent |
| Operating temperature | -30°C to +50°C target range |
Performance
| Top speed | Up to 60 km/h, configurable by market and regulatory pathway |
|---|---|
| Range | 100–200 km depending on terrain, load, temperature, speed, drive cycle, and configuration |
| Payload capacity | ~150 kg sport/off-road, 250 kg standard, up to 500 kg on flat-surface use cases |
| Max towing | Up to 350 kg, configuration and terrain dependent |
| Ground clearance | 200 mm |
| Suspension travel | 120 mm target |
| Turning radius | ~1.8 m standard; 0 m tank-turn mode on suitable surfaces |
Suspension & brakes
| Suspension | Flat double-wishbone architecture |
|---|---|
| Travel | 120 mm target suspension travel |
| Modes | Adjustable preload; Urban / Off-road tuning pathway |
| Shock type | Optional air or coil packages; optional preload, damping, rebound, and lock-out depending on configuration |
| Brakes | Hydraulic disc brakes on all four wheels |
| Electronic parking brake | Included |
| Regenerative braking | Yes, recovers energy under suitable operating conditions |
Chassis & dimensions
| Folded (L × W × H) | 1650 × 1000 × 520 mm |
|---|---|
| Unfolded (L × W × H) | 1650 × 1000 × 1250 mm |
| Expanded (L × W × H) | 2250 × 1000 × 1250 mm |
| Wheelbase | 1120–1370 mm adjustable, longer by frame-block extension |
| Track width | 850 mm or 1135 mm |
| Rim size | 12 in diameter × 5 in width |
| Base platform weight | ~180 kg |
| Frame mounting | T-slots across the chassis for modular attachments |
| Materials | Corrosion-resistant aluminum alloys and long-life hardware |
Vehicle Control Unit (VCU)
| Processor | Dual-core 240 MHz |
|---|---|
| Bus | CANBUS real-time control architecture |
| Wireless / serial | Bluetooth and UART |
| Drive features | Eco / Standard / Performance, crawl, cruise, tank turn, RWD/AWD selection, traction control, regenerative braking |
| Software path | Modular, development-ready architecture with OTA updates, intelligent settings, diagnostics, and partner configuration pathway |
| Auxiliary power | 48 V output up to 2.4 kW / 50 A continuous, configuration and thermal limits dependent |
| Advanced operation | Remote control, unmanned capability, AI/autonomy compatibility, fleet-dashboard integration pathway |
Environmental & safety
| IP rating | IP67 lower/main block target, configuration dependent |
|---|---|
| Operating environments | Rain, snow, dust, and shallow-water crossing scenarios, subject to configuration and maintenance |
| Corrosion resistance | Aluminum alloy frame and marine-grade hardware pathway |
| Compliance pathway | Designed to support multiple regional regulatory pathways depending on configuration, application, and market |
Validation & development
Designed, modelled, prototyped, tested, and improved.
UPT development combines mechanical kinematics, electronics integration, vehicle-control software, structural packaging, powertrain testing, simulator tooling, and iterative prototype refinement.
-
01
Model
Suspension, steering, and vehicle-performance simulation: kinematic curves, steering-ratio analysis, wheel-load transfer, route-based range modelling, drive-cycle analysis, and battery sensitivity modelling.
-
02
Build
Prototype chassis and subsystem integration: frame modules, suspension packaging, fenders, bumpers, console, handlebar controls, electronic parking brake, VCU, CAN communication, and drive-control integration.
-
03
Test
Functional testing and design iteration: motor synchronization, steering refinement, braking behavior, suspension checks, CAN debugging, payload assumptions, and usability validation across configurations.
-
04
Scale
Partner-specific configuration and production pathway: shared technical platform with modular upper bodies, attachments, regional compliance pathways, service documentation, and scalable manufacturing logic.
Partner-ready platform
From vehicle to tool: industry modules can define the final product.
UPT is engineered for partners who need more than a standard vehicle. The same platform supports application-specific modules for municipal operations, resorts, farms, campuses, warehouses, emergency response, security patrol, robotics, mobile retail, accessibility, and last-mile logistics.

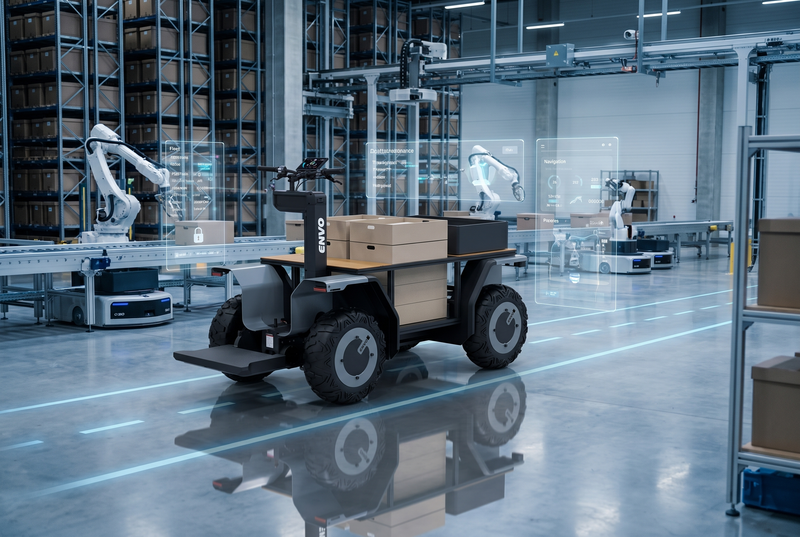

Cargo and utility
Flatbeds, cargo boxes, tool racks, trailers, cleaning systems, landscaping modules, and delivery bodies.

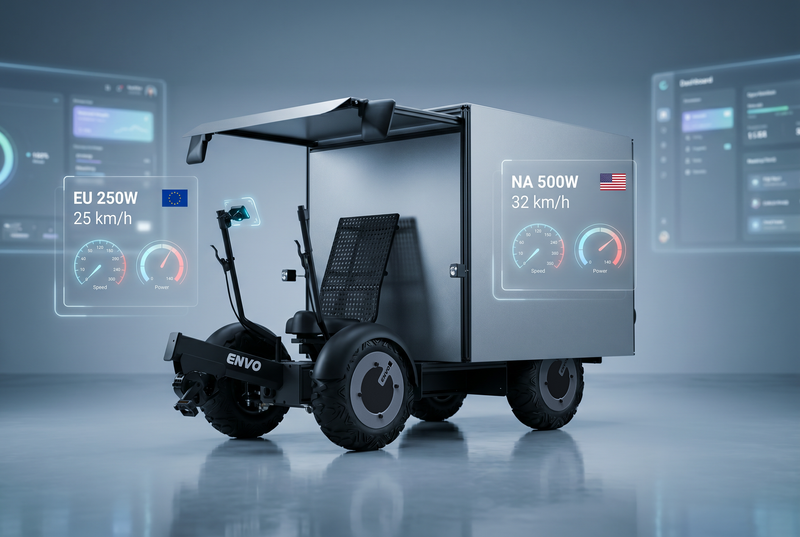

Passenger and mobility
Single-rider, multi-passenger, adaptive mobility, airport/campus shuttle, resort/tourism, and seated micro-transit configurations.

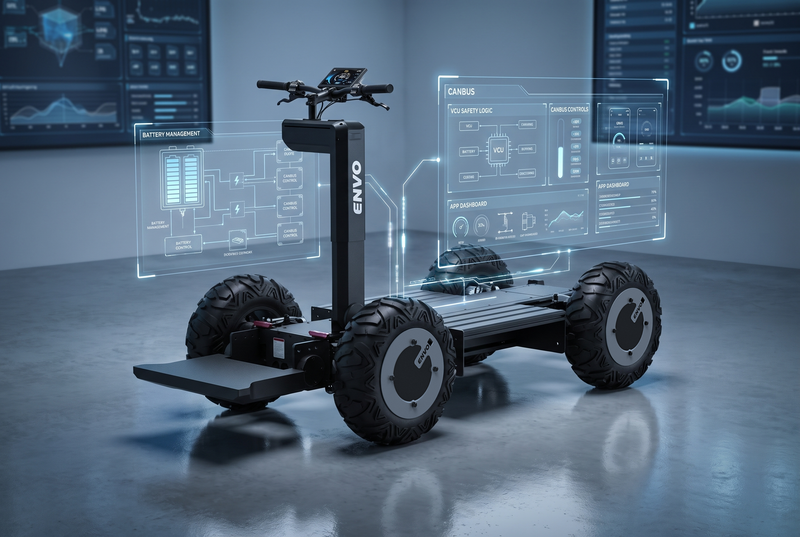

Smart and robotic
Sensors, teleoperation, fleet dashboard, autonomous-stack integration, robotics support, mobile power, and custom control interfaces.
Want to spec a configuration?
Let's get into the details.
We work with OEM partners, fleet operators, distributors, and integrators to evaluate UPT-based configurations, route performance, payload requirements, regulatory pathways, and custom module opportunities.
